All-steel anti-static floor cleaning

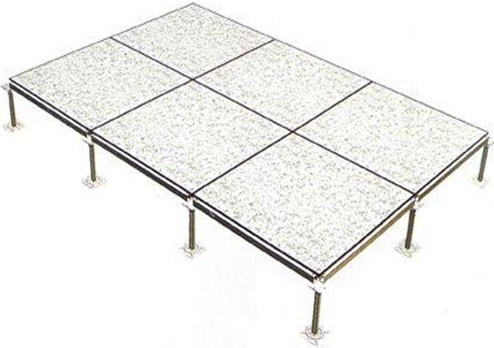

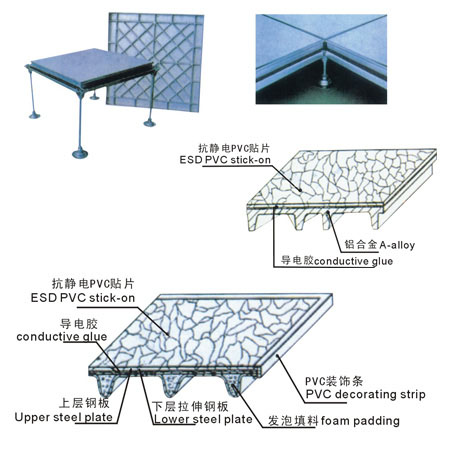

All-steel anti-static flooring (non-standard and national standard)






It uses high wear-resistant melamine HPL fireproof board or PVC as the surface layer (the HPL fireproof board veneer is not easy to use due to dry climate in the northern region), a steel shell structure base material, and it is also divided into edges and edges depending on whether there are black glue strips.

The advantage of all-steel flooring is that it is easy to construct and there will be no gap problems after installation. It is easy to replace. The disadvantage is that the surface layer material is not wear-resistant, has a short life, and is easy to peel and tilt, and it will be replaced in a few years.




Technical Indicators

Conductivity: Surface resistance 106-109 ohms; body resistivity 107-1010 ohms/cm

Smoke resistance: not less than 1600 ℃

Wear resistance: Level 4/6000 revolutions

Extreme cold resistance: 15℃-105℃

No obvious cracks appear after 10 quenchymal and cold cycles

Break modulus: minimum value is not less than 27Mpa

Warp: ±0.5%

Floor specifications: 600×600×10mm

Comply with the indicators are anti-static ceramic floors




Quality identification

Good anti-static flooring should be environmentally friendly. Adhesives should be used in the production process of

 anti-static floor substrates, and formaldehyde is one of the main components of adhesives. Therefore, anti-static flooring

often contains formaldehyde, and formaldehyde is called "invisible killer". According to national standards,

the formaldehyde emission of substrates must meet the E1 standard, that is, the formaldehyde emission should be less

than 9mg/100g. Only substrates below this standard are harmless to the human body. When buying anti-static floors,

don’t buy them if you smell an irritating smell. Good anti-static floors should be moisture-proof. The moisture-proof performance must be reflected by the index of water absorption thickness expansion rate. The higher the index value, the worse the moisture-proof performance. Floors with poor moisture resistance are very likely to experience expansion and deformation in humid environments in the rainy season in spring. We remind consumers to buy floors with water absorption thickness and expansion rate below 10% when purchasing.

Good anti-static flooring without fading

Some imitation solid wood floors look bright in color and delicate in patterns. However, some imitation of solid wood

floors are like chalk words on the blackboard. When you wipe the board, the colors will be gone. When purchasing floors,

consumers must choose products with a light-resistant color fastness of level 7 or above, otherwise your shoes will

become "embroidered shoes".

Good anti-static floors must be wear-resistant

High wear resistance is one of the most prominent advantages of laminate flooring. The mainstream products in the

world's laminate flooring market should achieve the wear resistance of AC3 (that is, the rotation speed is above 6000 rpm). There are many low-priced floors on the market that use low-quality wear-resistant paper to reduce costs, which naturally has low wear resistance and will greatly shorten the service life.






















ISO 14644-1 Cleanroom Standards

Class	maximum particles/m3						FED STD 209E equivalent
	>=0.1 µm	>=0.2 µm	>=0.3 µm	>=0.5 µm	>=1 µm	>=5 µm
ISO 1	10	2
ISO 2	100	24	10	4
ISO 3	1,000	237	102	35	8		Class 1
ISO 4	10,000	2,370	1,020	352	83		Class 10
ISO 5	100,000	23,700	10,200	3,520	832	29	Class 100
ISO 6	1,000,000	237,000	102,000	35,200	8,320	293	Class 1,000
ISO 7				352,000	83,200	2,930	Class 10,000
ISO 8				3,520,000	832,000	29,300	Class 100,000
ISO 9				35,200,000	8,320,000	293,000	Room Air

BS 5295 Cleanroom Standards

	maximum particles/m3
Class	>=0.5 µm	>=1 µm	>=5 µm	>=10 µm	>=25 µm
Class 1	3,000		0	0	0
Class 2	300,000		2,000	30
Class 3		1,000,000	20,000	4,000	300
Class 4			20,000	40,000	4,000
